$3,799.00

Availability: In stock

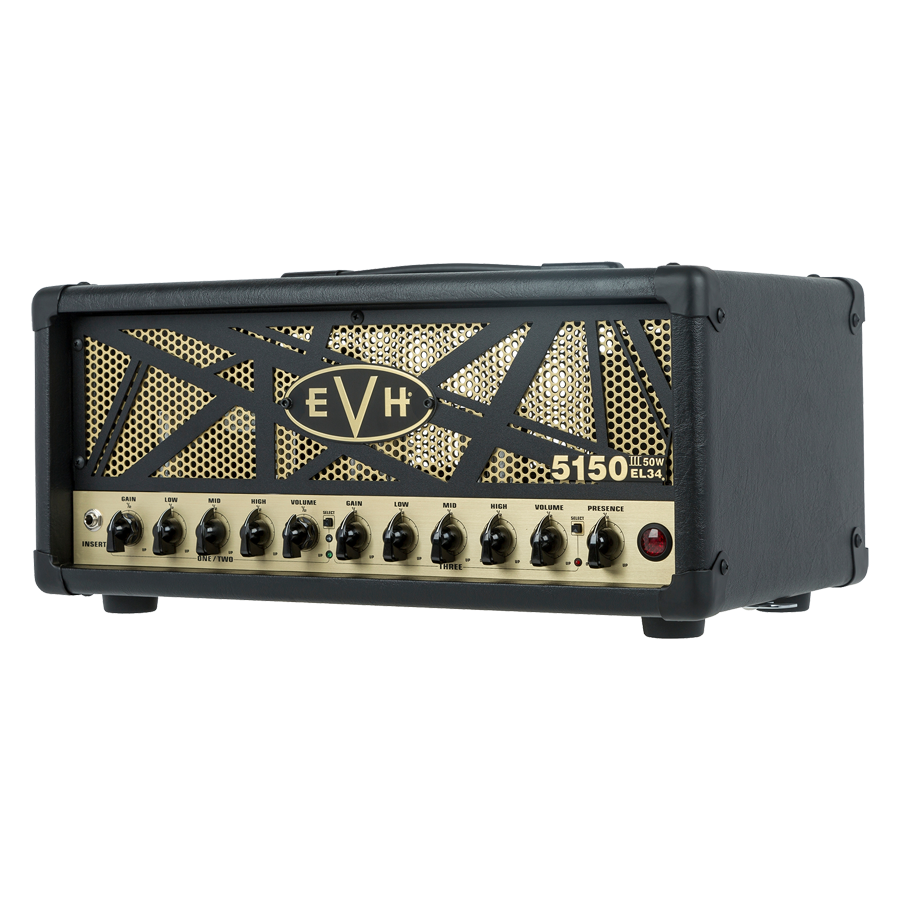

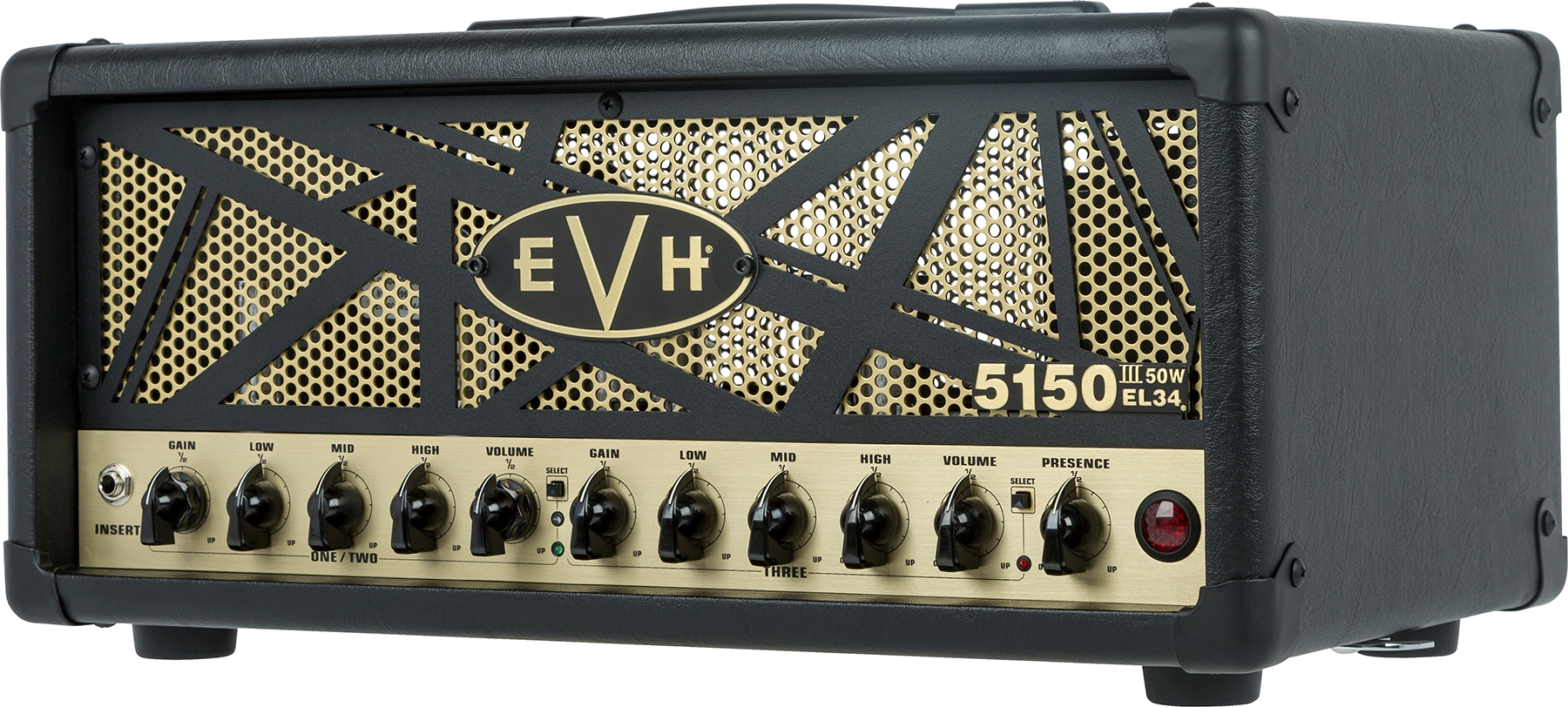

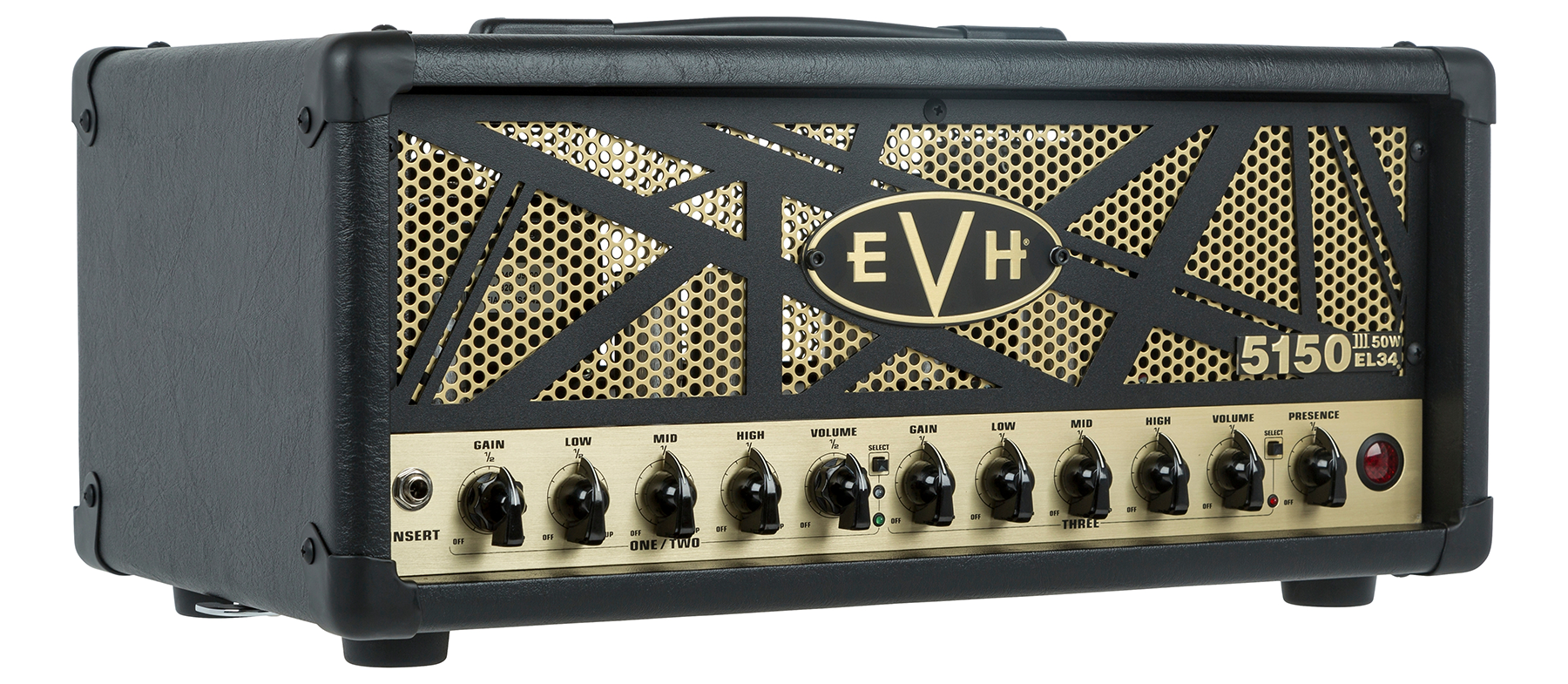

EVH 5150III 50 Watt EL34 Tube Head

EVH 5150III 50 Watt EL34 Tube Head – Independent volume and gain control for all three channels has arrived with the 5150III® 50W EL34 head. Experience total control, along with the same lethal looks and ferocious EL34 tone of the 100-Watt head. The EL34 power tubes deliver signature harmonic overtones, with more dynamic compression and saturation that evoke a more modern “British” sound, all with the sustain and versatility expected from EVH® 5150III® amps. Channel one boasts a more sparkling and compressed clean tone, while channels two and three possess a slightly darker and compressed tone with even more saturation than before. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high), while channel 3 has an independent EQ. Other features include a rear-panel resonance control that tailors low-frequency response for all channels and a global presence control. Wrapped in an elegant gold and black EVH motif, the EL34 50-watt head also is equipped with an effects loop, headphone jack, pre-amp out and midi-in.

EVH 5150III 50 Watt EL34 Tube Head

EVH 5150III 50 Watt EL34 Tube Head – Independent volume and gain control for all three channels has arrived with the 5150III® 50W EL34 head. Experience total control, along with the same lethal looks and ferocious EL34 tone of the 100-Watt head. The EL34 power tubes deliver signature harmonic overtones, with more dynamic compression and saturation that evoke a more modern “British” sound, all with the sustain and versatility expected from EVH® 5150III® amps. Channel one boasts a more sparkling and compressed clean tone, while channels two and three possess a slightly darker and compressed tone with even more saturation than before. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high), while channel 3 has an independent EQ. Other features include a rear-panel resonance control that tailors low-frequency response for all channels and a global presence control. Wrapped in an elegant gold and black EVH motif, the EL34 50-watt head also is equipped with an effects loop, headphone jack, pre-amp out and midi-in.

FEROCIOUS EL34 TONE

In 1979, Eddie Van Halen started a revolution with a quartet of EL34’s. Today that revolution continues with the 5150III 50W EL34 Head — delivering Lethal Looks and Ferocious EL34 Tone. Its three (Clean, Crunch and Lead) channels capture a vast tonal landscape similar in style to what can be heard on early Van Halen records, delivering signature melodic overtones with increased dynamic compression and saturation to evoke a more modern “British” sound, all with boundless sustain and versatility. Channel one soars with unmatched sparkly cleans and compressed tone. Channel two delivers blistering overdrive and darker, spongier tones, while channel three pushes the gain to its limits for standout leads.

VERSATILITY AT YOUR FINGERTIPS

The 50W EL34 Head features dual concentric controls that allow you to independently dial-in volume and gain for Ch. 1 and 2 for level matching. Ch. 3 has its own gain, low, mid, high and volume dials. A global presence knob on the front panel creates full control over ultra-high frequencies, while the rear global resonance knob adjusts the power amp’s low frequency response.

THAT MODERNIZED BRIT TONE

There is no shortage of roaring tonal EL34 tonal swagger with this head, courtesy of its two JJ EL34 Apex Matched power tubes and seven JJ ECC83S (12AX7) preamp tubes, which sear with classic British tone that cuts through the mix with astounding mid-range clarity and crispy highs for the pinnacle of intense, high-gain performance.

BEHIND THE SCENES

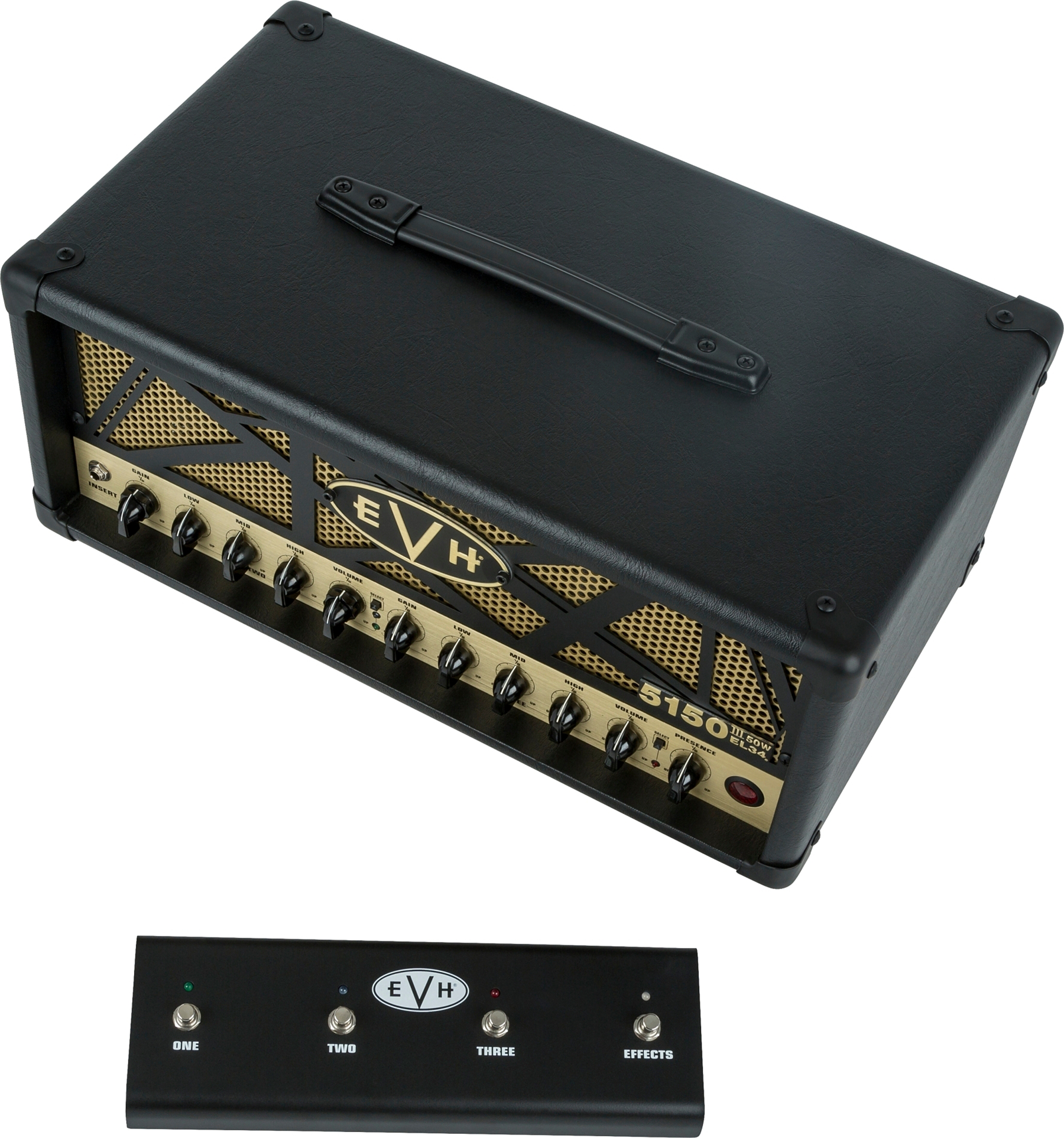

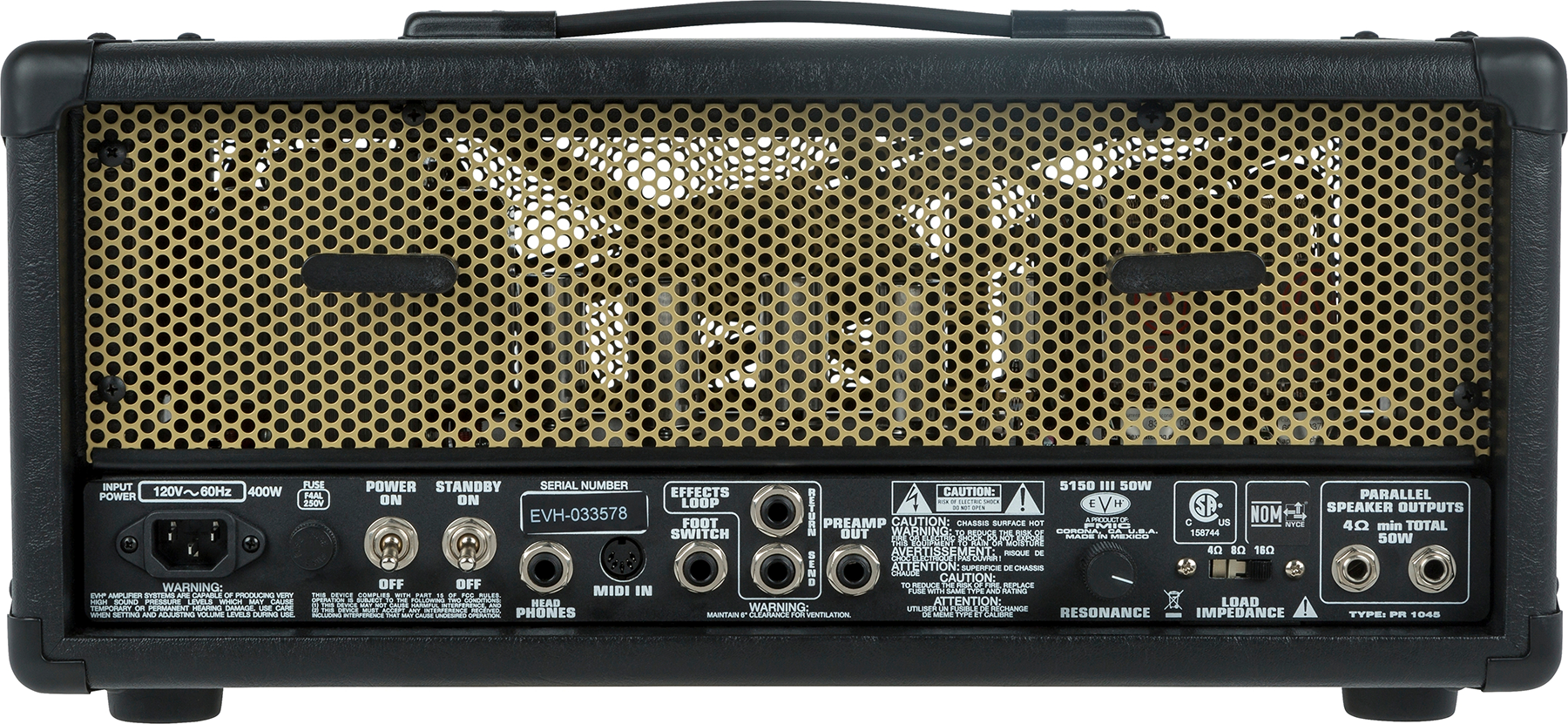

This amp also features a MIDI rear panel input, which allows you to directly connect a digital effects interface and sync your tone to your favorite patch for even more tonal variance, a headphone jack and a 4-button footswitch that allows you to quickly toggle between the channels or engage the effects loop.

EVH 5150 III 50W EL34 Features:

  • Compact high-gain amplifier head with EL34 power tubes
  • EL34 power tubes give the amp a British tone
  • Channel 1 offers a sparkling compressed clean tone
  • Channels 2 and 3 (crunch and lead, respectively) are dark, highly compressed, and saturated
  • Resonance control dials the amp into different cabs
  • Global Presence control and shared 3-band EQ for channels 1 and 2 with an independent EQ for channel 3
  • Effects loop for integrating your pedalboard and other processors
  • Headphone jack for private practice
  • Preamp Out jack for connecting to another amp’s power in for multiple amp use, or to a mixing console
  • MIDI In jack for connecting a foot controller for channel selection and effects loop bypass
  • External bias adjustment and test points
  • In-your-face black-on-gold motif

Tech Specs

  • Type: Tube
  • Number of Channels: 3
  • Total Power: 50W
  • Preamp Tubes: 7 x 12AX7
  • Power Tubes: 2 x EL34
  • EQ: 3-band EQ, Resonance
  • Inputs: 1 x 1/4″
  • Outputs: 2 x 1/4″ (speaker), 1 x 1/4″ (preamp)
  • Headphones: 1 x 1/4″
  • Effects Loop: Yes
  • MIDI I/O: In
  • Footswitch I/O: 1 x 1/4″ (channels/effects)
  • Footswitch Included: Yes, 4-button footswitch
  • Bias Type: Adjustable Fixed
  • Construction Material: Birch Plywood with Black Textured Vinyl
  • Power Source: Standard IEC AC power cable
  • Height: 8.6″
  • Width: 20″
  • Depth: 12″
  • Weight: 35 lbs.
  • Model #: 2253063000
