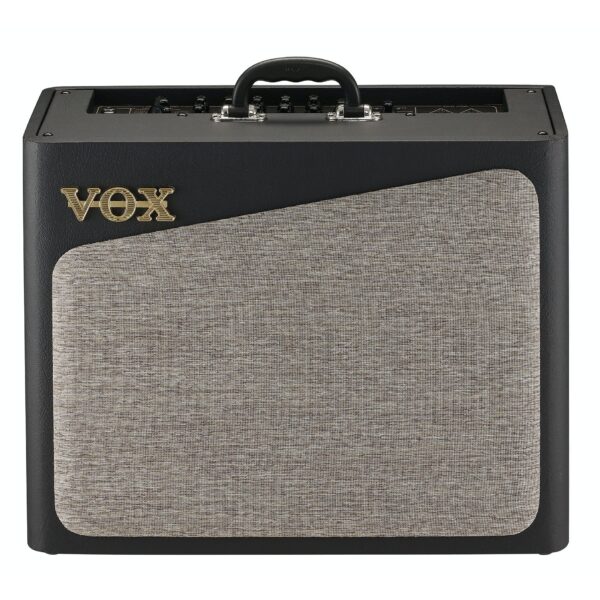

Vox AV30 30 Watt 1×10″ Analog Valve Modeling Amplifier

The Vox AV30 30 Watt 1×10″ Analog Valve Modeling Amplifier is a tube, two-channel, analogue guitar amplifier designed to provide a variety of analogue amp tones for guitarists playing live and recording in the studio. It features a 10″ speaker and delivers 30W RMS at 4 Ohms.

The preamp section offers eight different preamp circuits, ranging from smooth and clean to thick and distorted. It utilises a 12AX7 tube, and has switchable Fat and Bright circuits. Each channel has controls for bass, middle, treble, gain, and volume. The power amp section incorporates a 12AX7 tube. Switches are provided for different voices and damping settings.

Three independent, analogue-voiced, digital effects (chorus, delay, and reverb) are available. Each effect features adjustable parameters and an on/off switch. Integrate your stompboxes via the mono 1/4” effects loop. A dedicated 1/4” input is provided for connection to a VOX VFS2 or VFS5 footswitch (both available separately).

Connect a smartphone, MP3 player, or laptop to the 3.5mm (1/8”) stereo aux input, then play along with your favourite tracks. Plug in headphones via the 3.5mm stereo headphone jack to practice without disturbing neighbours.

Key Features:

Configuration

• 30W RMS at 4 Ohms.
• External speaker output (4 Ohms)
• Two channels.
• Mono effects loop.

Cabinet

• Single 10″ speaker.
• The speaker is installed from the front so that the sound will emanate from a projecting position, creating a wider sound field.
• Left and right edges are significantly rounded, allowing the sound to project widely.
• The speaker is mounted asymmetrically to prevent internal standing waves and deliver a flatter frequency response.
• By mounting the speaker on the cabinet frame, the entire cabinet receives the vibration of the speaker and creates a resonance appropriate for the amp.
• The proprietary bass-reflex structure ensures a natural sound balance.
• A horizontal sound post unifies the vibrations of the rear and the baffle.

Tube Circuits

• 12AX7 tube in preamp
• Bright and Fat switches for preamp stage
• 12AX7 tube in power amp
• Power amp Bias switch provides modern and vintage voices
• Power amp Reactor switch offers two damping settings, flat and tight or dynamic and loose

Eight All-Analogue Preamp Circuits

• Clean 1: Clean 2×12 combo amplifier reproduction with large amounts of headroom, smooth high-end, and thick low-end.
• Clean 2: 4×10 combo amplifier reproduction with thick, strong overdrive.
• Crunch 1: VOX AC15 EF86 channel simulation with many variations of crunch.
• Crunch 2: Reproduction of post-1964 era VOX AC30 Top Boost with bell-chime clean and dynamic overdrive.
• OD 1: Reproduction that embodies classic rock tones of the ’70s.
• OD 2: Reproduction representative of hard rock overdrive of the ’80s.
• H.Gain 1: Reproduction of high-gain amplifier circa 1990s, ideal for anything from a heavy riff to a thick lead solo.
• H.Gain 2: Highest gain, suitable for 7-string or drop tuning.

Analogue-Voiced Digital Effects

• Independently selectable chorus, delay, and reverb.
• Adjustable effects output level.
• Variable chorus speed.
• Adjustable delay and reverb time.

Additional Controls

• Per-channel gain and volume controls.
• Per-channel bass, middle, and treble controls.
• Variable master volume.

Additional Features

• 3.5mm (1/8″) stereo aux input.
• 3.5mm (1/8″) stereo headphone output.
• Mono 1/4″ effects loop.
• 1/4″ footswitch jack.
